Mastering Design Patterns in Python: A Comprehensive Guide with Real-World Use Cases
Understand, Implement, and Apply Design Patterns to Solve Real-World Problems with Python Examples
Design Patterns in Python
Design patterns in Python are reusable solutions to common software design problems. Python's flexibility and dynamic nature make implementing design patterns straightforward, often without needing additional frameworks or boilerplate code.
Here are commonly used design patterns in Python, categorized and explained with code examples:
1. Creational Patterns
These patterns deal with object creation mechanisms.
1.1 Singleton Pattern
Ensures a class has only one instance and provides a global point of access.
Ensures a single instance of a class is created throughout the application's lifecycle.
Provides a global access point to that instance.
Manages shared resources effectively (e.g., database connections, configuration files).
Use Case: Database Connection Pool
In web applications, a database connection pool ensures that only one connection pool instance exists, reusing connections to handle requests efficiently.
Example: Managing a pool of database connections in a Django or Flask web application to prevent redundant connections.
UML Description:
Class Diagram:
A single class with:
A private constructor.
A static instance variable.
A static
getInstance()
method to return the single instance.
+----------------+
| Singleton |
+----------------+
| - instance |
| + getInstance(): Singleton |
+----------------+
Python Example:
class Singleton:
_instance = None
def __new__(cls, *args, **kwargs):
if not cls._instance:
cls._instance = super(Singleton, cls).__new__(cls, *args, **kwargs)
return cls._instance
# Example Usage
singleton1 = Singleton()
singleton2 = Singleton()
print(singleton1 is singleton2) # Output: True
1.2 Factory Pattern
Provides an interface for creating objects without specifying their exact class.
Provides an interface to create objects without specifying their exact class.
Decouples object creation logic from the client.
Allows runtime determination of which class to instantiate.
Use Case: Payment Gateway Integration
Different payment gateways (PayPal, Stripe, Razorpay) require different API calls. A factory pattern can create the appropriate payment gateway object based on user selection.
Example: E-commerce platforms use this pattern to dynamically create instances of payment services.
UML Description:
Class Diagram:
A factory class that creates and returns instances of product classes based on input.
+------------------+
| Factory |
+------------------+
| + getProduct(type: String): Product |
+------------------+
^
|
+-----------------+ +-----------------+
| Product A | | Product B |
+-----------------+ +-----------------+
Python Example:
class Dog:
def speak(self):
return "Woof!"
class Cat:
def speak(self):
return "Meow!"
class AnimalFactory:
@staticmethod
def get_animal(animal_type):
if animal_type == "dog":
return Dog()
elif animal_type == "cat":
return Cat()
return None
# Example Usage
animal = AnimalFactory.get_animal("dog")
print(animal.speak()) # Output: Woof!
1.3 Builder Pattern
Separates the construction of a complex object from its representation.
Separates complex object construction from its representation.
Constructs objects step-by-step using a series of methods.
Useful when an object requires many optional parameters or components.
Use Case: Creating Complex Configuration Files
Applications like Docker Compose or Kubernetes require detailed configurations. The builder pattern helps construct these configurations step-by-step based on user inputs.
Example: Building YAML configuration files dynamically for deployment pipelines.
UML Description:
Class Diagram:
A builder class constructs a complex object step-by-step.
+----------------+
| Builder |
+----------------+
| + setPart1() |
| + setPart2() |
| + build(): Product |
+----------------+
|
v
+----------------+
| Product |
+----------------+
Python Example:
class Car:
def __init__(self):
self.engine = None
self.wheels = None
class CarBuilder:
def __init__(self):
self.car = Car()
def add_engine(self, engine):
self.car.engine = engine
return self
def add_wheels(self, wheels):
self.car.wheels = wheels
return self
def build(self):
return self.car
# Example Usage
builder = CarBuilder()
car = builder.add_engine("V8").add_wheels(4).build()
print(car.engine, car.wheels) # Output: V8 4
2. Structural Patterns
These patterns deal with class and object composition.
2.1 Adapter Pattern
Allows incompatible interfaces to work together.
Bridges the gap between incompatible interfaces.
Converts an interface into one that a client expects.
Enables integration of legacy systems with modern code.
Use Case: Legacy System Integration
When upgrading to a new system, legacy systems might use different protocols or data formats. The adapter pattern helps bridge the gap.
Example: Converting XML data from a legacy service to JSON for a modern API.
UML Description:
Class Diagram:
The adapter class implements the target interface and adapts the functionality of the existing class.
+------------------+ +------------------+
| TargetInterface | | ExistingClass |
+------------------+ +------------------+
| + request() | | + specificRequest() |
+------------------+ +------------------+
^
|
+------------------+
| Adapter |
+------------------+
| + request() |
+------------------+
Python Example:
class EuropeanSocket:
def plug_in(self):
return "220V"
class Adapter:
def __init__(self, socket):
self.socket = socket
def plug_in(self):
return f"Converted to 110V from {self.socket.plug_in()}"
# Example Usage
european_socket = EuropeanSocket()
adapter = Adapter(european_socket)
print(adapter.plug_in()) # Output: Converted to 110V from 220V
2.2 Decorator Pattern
Adds functionality to an object dynamically.
Dynamically adds new functionality to an object without altering its structure.
Follows the Open/Closed Principle by extending behavior without modifying existing code.
Often used for logging, security, or validation tasks.
Use Case: Dynamic Logging
Web applications often need enhanced logging during debugging or for monitoring purposes. The decorator pattern can dynamically add logging functionality to existing methods.
Example: Adding logging to REST API calls to capture request and response details without altering the core logic.
UML Description:
Class Diagram:
A decorator class wraps the component and adds extra functionality.
+------------------+
| Component |
+------------------+
| + operation() |
+------------------+
^
|
+------------------+ +------------------+
| ConcreteComponent | | Decorator |
+------------------+ +------------------+
^ ^
| |
+------------------+ +------------------+
| ConcreteDecorator | | ConcreteDecorator2 |
+------------------+ +------------------+
Python Example:
def decorator(func):
def wrapper():
print("Before function call")
func()
print("After function call")
return wrapper
@decorator
def say_hello():
print("Hello, World!")
# Example Usage
say_hello()
# Output:
# Before function call
# Hello, World!
# After function call
2.3 Proxy Pattern
Provides a placeholder for another object to control access.
Provides a placeholder or intermediary for accessing an object.
Controls access, adds functionality (e.g., caching, logging), or enforces security.
Useful for lazy initialization, remote object access, or access control.
Use Case: Access Control
Proxy can act as an intermediary for sensitive resources, controlling access based on user roles.
Example: Implementing a proxy for a financial system where only authorized users can access confidential reports.
UML Description:
Class Diagram:
Proxy class controls access to the real subject.
+------------------+
| Subject |
+------------------+
| + request() |
+------------------+
^
|
+------------------+ +------------------+
| Proxy | | RealSubject |
+------------------+ +------------------+
| + request() | | + request() |
+------------------+ +------------------+
Python Example:
class RealSubject:
def request(self):
return "Real Subject Request"
class Proxy:
def __init__(self, real_subject):
self.real_subject = real_subject
def request(self):
print("Proxy in action")
return self.real_subject.request()
# Example Usage
real_subject = RealSubject()
proxy = Proxy(real_subject)
print(proxy.request())
# Output:
# Proxy in action
# Real Subject Request
3. Behavioral Patterns
These patterns focus on communication between objects.
3.1 Observer Pattern
Defines a one-to-many dependency, so when one object changes, all dependents are notified.
Establishes a one-to-many dependency between objects.
When the state of one object changes, all dependent objects are notified.
Useful for event-driven systems like GUIs or real-time notifications.
Use Case: Real-Time Notifications
Used in applications where multiple components need to be updated when an event occurs (e.g., stock market updates or chat notifications).
Example: A stock trading app where multiple widgets (charts, tickers) update in real-time based on price changes.
UML Description:
Class Diagram:
A subject notifies its observers of state changes.
+------------------+
| Subject |
+------------------+
| + attach() |
| + detach() |
| + notify() |
+------------------+
|
v
+------------------+ +------------------+
| Observer | | ConcreteObserver |
+------------------+ +------------------+
| + update() | | + update() |
+------------------+ +------------------+
Python Example:
class Subject:
def __init__(self):
self._observers = []
def add_observer(self, observer):
self._observers.append(observer)
def notify(self):
for observer in self._observers:
observer.update()
class Observer:
def update(self):
print("Observer updated")
# Example Usage
subject = Subject()
observer1 = Observer()
observer2 = Observer()
subject.add_observer(observer1)
subject.add_observer(observer2)
subject.notify()
# Output:
# Observer updated
# Observer updated
3.2 Strategy Pattern
Defines a family of algorithms, encapsulates each one, and makes them interchangeable.
Defines a family of algorithms and allows them to be interchangeable at runtime.
Encapsulates algorithms into separate classes.
Promotes the Open/Closed Principle by enabling new strategies without modifying existing code.
Use Case: Dynamic Pricing in E-Commerce
Different pricing strategies like discounts, buy-one-get-one, and percentage-off can be implemented dynamically.
Example: E-commerce platforms dynamically switching pricing strategies during sales.
UML Description:
Class Diagram:
Context class uses different strategies interchangeably.
+------------------+
| Strategy |
+------------------+
| + execute() |
+------------------+
^
|
+------------------+ +------------------+
| ConcreteStrategyA| | ConcreteStrategyB|
+------------------+ +------------------+
^
|
+------------------+
| Context |
+------------------+
| + setStrategy() |
| + executeStrategy() |
+------------------+
Python Example:
class StrategyA:
def execute(self):
return "Executing Strategy A"
class StrategyB:
def execute(self):
return "Executing Strategy B"
class Context:
def __init__(self, strategy):
self.strategy = strategy
def execute_strategy(self):
return self.strategy.execute()
# Example Usage
context = Context(StrategyA())
print(context.execute_strategy()) # Output: Executing Strategy A
context.strategy = StrategyB()
print(context.execute_strategy()) # Output: Executing Strategy B
3.3 Command Pattern
Encapsulates a request as an object, allowing parameterization and queuing.
Encapsulates a request as an object, enabling parameterization, queuing, and logging of requests.
Decouples the invoker from the object that handles the request.
Useful for task queues, undo/redo functionality, and transaction management.
Use Case: Task Queue in Job Schedulers
Tasks in a queue need encapsulated commands to execute in sequence or asynchronously.
Example: Background task processing in Celery or RQ (Redis Queue) where tasks like email sending are queued and executed independently.
UML Description:
Class Diagram:
Encapsulates a request as an object, allowing parameterization.
+------------------+
| Command |
+------------------+
| + execute() |
+------------------+
^
|
+------------------+ +------------------+
| ConcreteCommand | | Receiver |
+------------------+ +------------------+
^
|
+------------------+
| Invoker |
+------------------+
| + setCommand() |
| + executeCommand() |
+------------------+
Python Example:
class Command:
def execute(self):
pass
class LightOnCommand(Command):
def execute(self):
return "Light turned ON"
class LightOffCommand(Command):
def execute(self):
return "Light turned OFF"
# Example Usage
command_on = LightOnCommand()
command_off = LightOffCommand()
print(command_on.execute()) # Output: Light turned ON
print(command_off.execute()) # Output: Light turned OFF

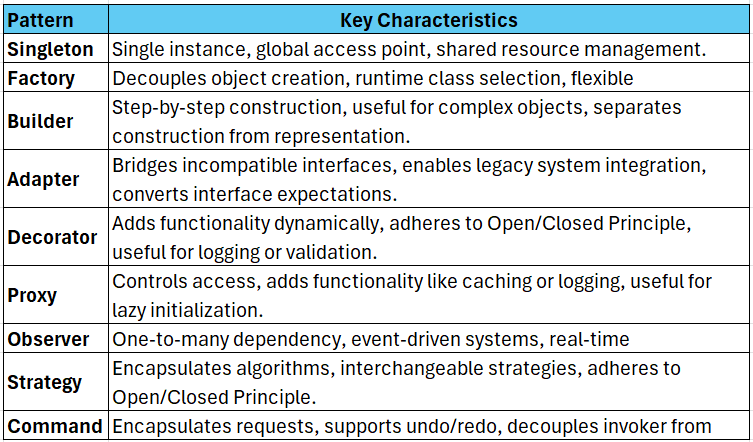

Summary of Characteristics by Pattern Type
Benefits of Using Patterns in Real-Time Applications
Scalability: Patterns allow applications to handle more users or requests efficiently.
Maintainability: Easier to update or extend functionality.
Reusability: Solutions can be applied to similar problems across projects.
Clarity: Patterns provide clear and consistent approaches for common problems.
Folder Structure of Design Patterns
DesignPatterns/
├── CreationalPatterns/
│ ├── Singleton/
│ │ └── singleton_example.py
│ ├── Factory/
│ │ └── factory_example.py
│ ├── Builder/
│ └── builder_example.py
├── StructuralPatterns/
│ ├── Adapter/
│ │ └── adapter_example.py
│ ├── Decorator/
│ │ └── decorator_example.py
│ ├── Proxy/
│ └── proxy_example.py
├── BehavioralPatterns/
│ ├── Observer/
│ │ └── observer_example.py
│ ├── Strategy/
│ │ └── strategy_example.py
│ ├── Command/
│ └── command_example.py
Explore More:
If you enjoyed this article, dive deeper into the fascinating world of mathematics, technology, and ancient wisdom through my blogs:
🌟 Ganitham Guru – Discover the beauty of mathematics and its applications rooted in ancient and modern insights.
🌐 Girish Blog Box – A hub of thought-provoking articles on technology, personal growth, and more.
💡 Ebasiq – Simplifying complex concepts in AI, data science, and beyond for everyone.
🌐 Linktr.ee - Discover all my profiles and resources in one place.
Stay inspired and keep exploring the endless possibilities of knowledge! ✨
